The pump for energy, offshore and mining bolting and tensioning

Remote jobs in the mining and energy sector benefit from new pump and fastening technology

By Tony Cooper, Engineer and Asia-Pacific Marketing Manager, Enerpac

As technology continues to improve rapidly for hydraulic pump systems – adding many more options and significantly increasing performance, quality, and safety – choosing and pairing the right torque wrench pump or tensioner pump makes a vital difference to jobsite safety and efficiency.

A deeper understanding of hydraulic pumps and their many configurations can help a business become more efficient and carry out bolting work in any situation, including marine, offshore, power generation and mining.

Pumps in controlled bolting

Controlled bolting is the process of applying an accurate bolt load to a mechanical joint to meet design specifications. Bolt load can be measured directly using hydraulic bolt tensioners, ultrasonics, or calculating torque values determined by the bolt material, size, and friction of the stud and nut. Having the means to measure bolt load during or immediately following the bolting process is essential for joint integrity and safety.

energy and mining sites

Torque wrenches apply rotational force onto a nut to stretch, not yield, the bolt to achieve bolt load. A hydraulic torque wrench, when coupled with a specially designed torque pump, creates the torque output, or torque load, necessary to create the clamping force to secure bolted-joint integrity.

While torque wrenches and bolt tensioners work to accomplish the same objective – to clamp nuts and bolts together for joint integrity – tensioning directly stretches the bolt against the flange rather than nut rotation from the torque wrench. Tensioning typically creates a more accurate load required on larger bolts.

The torque wrench or bolt tensioner itself does not do the work alone; it is part of a system that also includes a hydraulic pump, hose, and accessories.

 Choosing a pump

Where you plan to use your hydraulic pumps and the power types available are key in determining product selection.

Torque wrench pumps are available in battery, electric, and air-powered models from global leaders such as Enerpac. In addition to finding reliable and advanced suppliers of the best technologies, it is also important to consider the product backup they offer – the best technology is not effective if service needs cannot be met promptly through a well established supplier and service network (which Enerpac, for one, has built up in Australasia for more than 50 years).

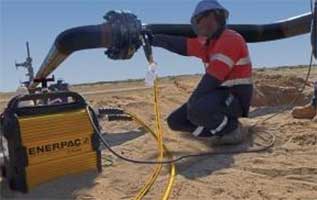

Power, portability and backup are doubly important on remote maritime, energy and mining sites Once you have selected a strong supplier, with robust supply chains, selection of the power source you need depends on the requirements of your jobsite. For example, if you are working in a potentially explosive atmosphere and your site requires ATEX certification, such as on an oil rig or in a mine, an air-powered model is likely the only choice. Enerpac offers a variety of air-powered models in its LAT and ZA-Series pumps.

On worksites where there is no need for explosion-proof tools, or where air compressors are not available or feasible, an electric-powered pump might be preferred. Enerpac offers electric-powered pumps in its E-Pulse, ZU-Series, and ZE-Series models.

If portability is a primary concern, a battery-powered model might work better. For example, if workers are performing bolting maintenance checks on a wind tower, battery-powered models like the Enerpac XC-series will be easier to transport and access tight spaces.

Hydraulic battery technology, for example, has reached a point where cordless alternatives (such as hydraulic pumps) can now offer the same performance as their corded counterparts in many applications, with a sufficient fuel reservoir to last whole shifts without needing to replace or recharge the battery.

E-Pulse Hydraulic Electric PumpsAn additional bonus is that they can be used in locations where there’s limited or no access to power, such as remote sites, inaccessible machinery or high places where dragging around a cord around is not an option. Not to mention obviating the risk of electrocution where space is tight or cluttered.

In saying this, I should emphasise that for a myriad of applications, a corded tool is totally safe, and the ideal solution where the cords and power input are completely out of anyone’s way. (After all, we at Enerpac are one of the world’s leading hydraulic organisations with a range of thousands of mains-connected tools and a commitment to our Global Goal Zero safety training policy).

And it should be emphasised too that both corded and cordless hydraulic tools available now are pursuing a path towards lighter weight and far better ergonomics and safety than ever before. This is particularly the case where the hydraulic technology is high-pressure (700 bar, 10,000 psi) which concentrates the greatest amount of force into the most compact and therefore easily handled tools.

More multidimensional worksites might make a variety of pumps necessary. A shipyard, for example, may handle new construction and refurbishment of existing ships. The work may take place in a number of locations with some in close proximity to power and others not. A space like the engine room located at the bottom rear of a ship might be better handled by a battery-powered model that avoids the need to run extension cords to the work area.

Industries with high safety priorities include mining and energy, construction and infrastructure

Similar to torque wrench systems, bolt tensioner pumps are available in electric, air-powered, and manual models. An electric tensioner pump like the Enerpac ZUTP-Series high-efficiency electric pump is compact and lightweight. The two-stage pump provides high flow at low pressure for fast system fills and controlled flow at high pressure for safe and accurate operation. An air-powered model like the ATP-Series tensioner pumps are likely the only option for working in environments like a gas-treatment facility. A manual tensioner pump like the Enerpac HPT tensioner pump is a lightweight and portable hand pump, and includes two-speed operation for reduced cycle times, a gauge, and an integrated relief valve. It’s best for test applications or occasional use.

Required performance

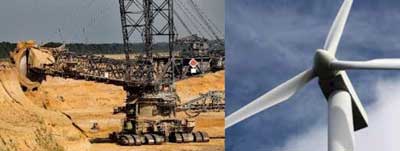

Application completion speed is another major consideration when choosing a pump. Someone constructing a wind tower, for example, who is fastening hundreds and hundreds of bolts a day, might require a pump powered by a large motor and cooled by a heat exchanger to achieve the needed speed and uptime. Consider that a larger electric pump moves the wrench approximately five times faster than a battery torque wrench pump: 1 litre per minute (983cc) at 10,000 psi (700 bar) versus 0.25 litres per minute (246cc) at 10,000 psi (700 bar).

The jobsite and weather conditions also play a role in the type of pump the work requires. A worker in a shutdown in the middle of the summer will be served better with a larger pump cooled with a heat exchanger than by a smaller pump that could fail in the heat.

There are trade-offs for everything, of course. A smaller pump might suit you better in certain situations. A larger pump just might not fit in your workspace.

Perhaps you are working alone in a location that is hard to access. You might not want to move a large pump to your worksite, and a lighter pump will better suit your needs.

 New features

ZU4 Pro Series pumpsPump system technology continues to accelerate in many ways. Auto cycling is one feature more companies are offering with their pumps. The feature makes it unnecessary to manually press and release pump pendant buttons repeatedly to operate the torque wrench. This is especially important when the job requires tightening a large number of fasteners.

Beyond auto cycling, Enerpac offers intelligent auto cycle (IAC) on the E-Pulse torque wrench pumps. IAC reduces the amount of fastening time and heat build-up by eliminating the waste of the wrench going to full pressure with every stroke when not necessary. Increased productivity and longer pump life are key benefits of IAC.

Looking past price

The price of a pump will be a consideration, but the focus should be on value. In the big picture, a hydraulic pump, when paired with a torque wrench or tensioner, could help a company complete job more quickly and safely. As mentioned previously, the durability of the pump is also essential. The benefits of a durable pump include more reliability for a longer period, longer life cycle, and less need to keep backup pumps.

Buying from a company that emphasises product support and service is incredibly important. Tools need to work, and pumps need to perform. Remember that hydraulic pumps are industrial equipment, and they will almost certainly need maintenance at some point. Pumps are often used in rough environments, exposed to oils, solvents, debris, and have other tools piled on top of them when transported. Durability, part availability, and the ease with which the pump can be serviced are important considerations.

Picking the right pump and accessories takes careful consideration and a sharp focus on emerging technology, but it will be time well spent that will ultimately maximise a company’s capabilities.
